iPhone / iPod Car Stereo – Kenwood KDC BT7539U

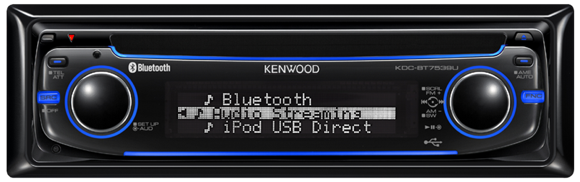

Kenwood KDC BT7539U
Past few weeks I was hunting for a good car stereo / receiver which has good compatibility with iPhone / iPod. I checked out the model Kenwood KDC BT7539U at Carrefour Deira Dubai and I was really happy to see the features mentioned in the box. I read couple of reviews online and I was so happy to see everything was working 100% perfectly with iPhone.

The above video is not exactly for the my model but it has the same features for iPod connectivity. So I bought this unit and I am 100% happy customer. iPod connectivity / control and iPhone blue tooth connectivity – 100%. Some features listed below

General Features

  • TDF(Preset Key-less & Large Display & Attractive Illumination Design)
  • 3 Line Mono Full dot FL Display
  • Security Code function
  • Rotary Encoder & Multi Control Wheel for Easy Operation
  • Key Illumination (Blue)
  • Manual Dimmer Function (Sub Illumination ,3step)
  • Demo Mode
  • Digital Clock (24H)
  • Display Off mode function
  • Supplied with Remote Control Unit (RC-547)
  • 2-way Telephone/Navigation Mute
  • Spectrum Analyzer
  • Emotional Illumination Effect
  • Auto Dimmer Function (Display, on/off)


Audio Features

  • Maximum Output Power : 50W x 4 (MOSFET Power IC)
  • 2.5V 3 Preouts
  • AUX Input (Rear)
  • Subwoofer Level & Low Pass Filter Adjustable
  • Built In Amp Mute Function
  • System E’s(HPF & LPF)
  • System Q:Sound Control with Pre-programmed Tone Curves
  • Separate Bass/Mid range/Treble Control & Source Tone Memory
  • AUX Input with Optional Unit (CA-C1AX or KCA-S220A)
  • Fader & Loudness Control
  • Attenuator (-20dB) with Smooth Volume Return
  • Dual Zone Source & Volume Control


Single CD Features

  • AAC (Advanced Audio Codec) Files Playback created by ex. Apple iTunesTM for Windows
  • WMA (Windows Media Audio) & MP3 Files Playback with ID-3 Tag Display
  • Multi-session Disc Playback
  • Folder Name Manual Search Function without Stopping Audio-play
  • 24bit D/A Converter
  • 0-bit Mute
  • CD Text Ready
  • CD-R/CD-RW Compatible
  • Supreme
  • Random/Repeat/Scan Play


USB Features

  • USB (Universal Serial Bus) Interface Ready
  • iPod 1 wire Direct Connection with Optional cable External Media Control Features
  • Dual External Media Control Capability (with Optional KCA-S220A)
  • DNPS (Disc Name Presets) with Compatible CD Changers
  • CD Text Ready with Compatible CD Changers
  • Direct Access with Remote
  • Random/Repeat/Scan Play (Disc/Track)
  • Optional Apple iPod Interface Ready (KCA-iP500)
  • Bluetooth Built-in (Hands-Free Profile /Audio Profile)
  • OEM Remote Interface


FM/AM Tuner Features

  • FM/AM 24 Station Presets (18FM, 6AM)
  • AME (Automatic Memory Entry)
  • Up/Down Seek Tuning
  • SNPS (Station Name Presets)
  • Selectable Channel Spacing


By Imthiaz

Programmer, SAAS, CMS & CRM framework designer, Love Linux & Apple products, Currently addicted to mobile development & working @bluebeetle


  1. Great post. I especially found the video to be very useful. I just wanted to point out that there are kits out there that will connect to your factory car stereo and allow full control of your iPod or iPhone through the vehicles factory head unit. A great option for those who don’t want to devalue their vehicle by removing stock parts.

  2. I guess the feed on your You Tube video is down. I wanted to see how this deck performs. Well, just reading the features you listed it sounds like a great deck. What is the average price of one of these? Doesn’t look to expensive.
