New in Town – Cubieboard3 aka CubieTruck

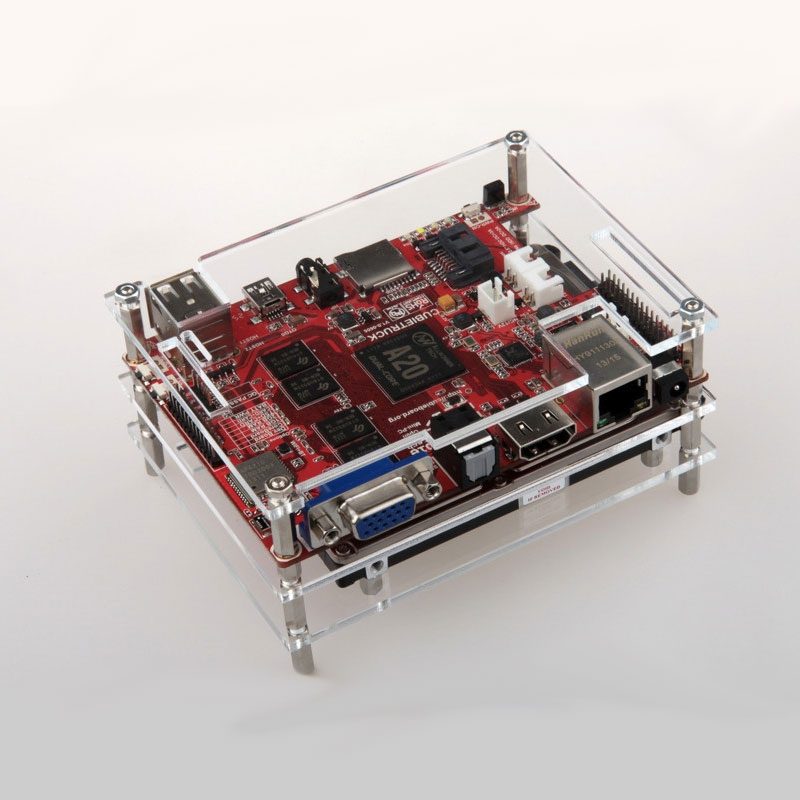

Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It’s a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface.

Features

  • Allwinner Tech A20 SOC
  • SATA supported
  • 54 extended pins
  • Built-in HDMI/ VGA display interface
  • Built-in WIFI+BT module
  • 2GB DDR3 RAM
  • Built-in IR receiver
  • SPDIF audio interface

Specifications

  • Allwinner Tech SOC A20 ARM® Cortex™-A7 Dual-Core ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
  • 2GB DDR3@480MHz
  • HDMI&VGA 1080P display output on-board
  • 10M/100M/1G Ethernet
  • WIFI + BT wireless connection with antenna on-board
  • SATA 2.0 interface support 2.5’ HDD (for 3.5’ HDD, only need another 12V power input)
  • Storage solution NAND + MicroSD
  • 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys
  • Power DC5V@2.5A with HDD support Li-battery & RTC
  • 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN x4 with 2.0 pitch connectors
  • PCB size 11cm *8cm*1.4mm

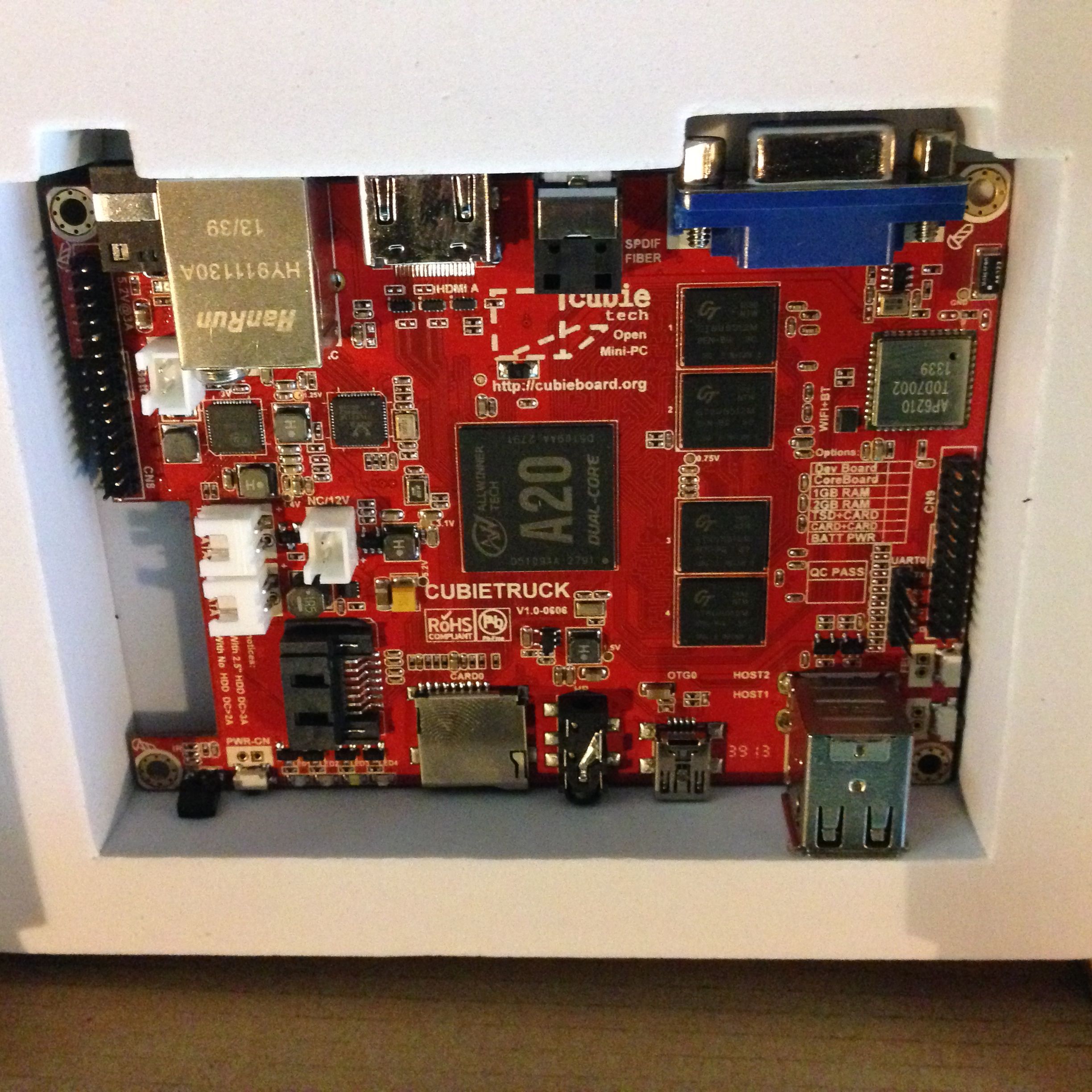

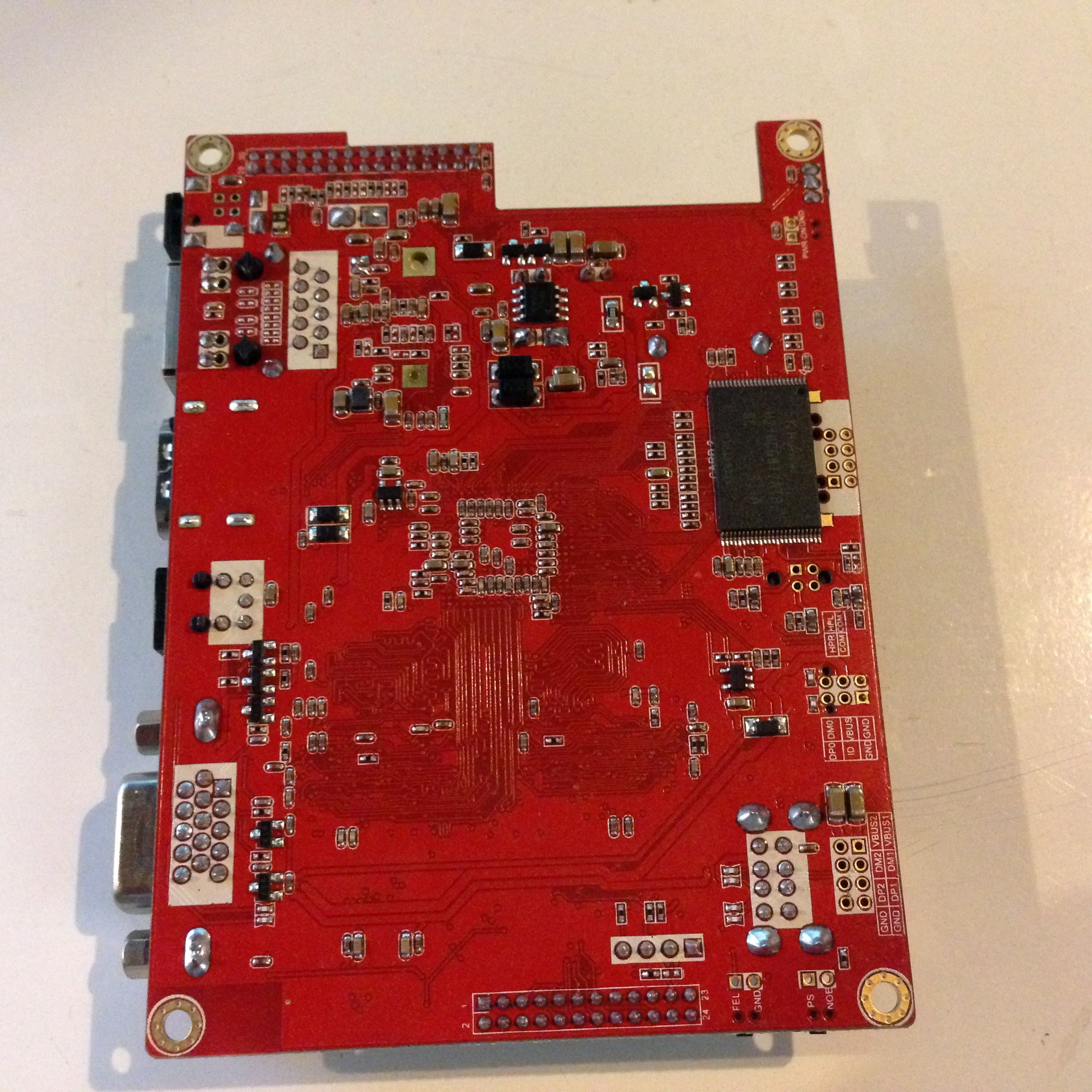

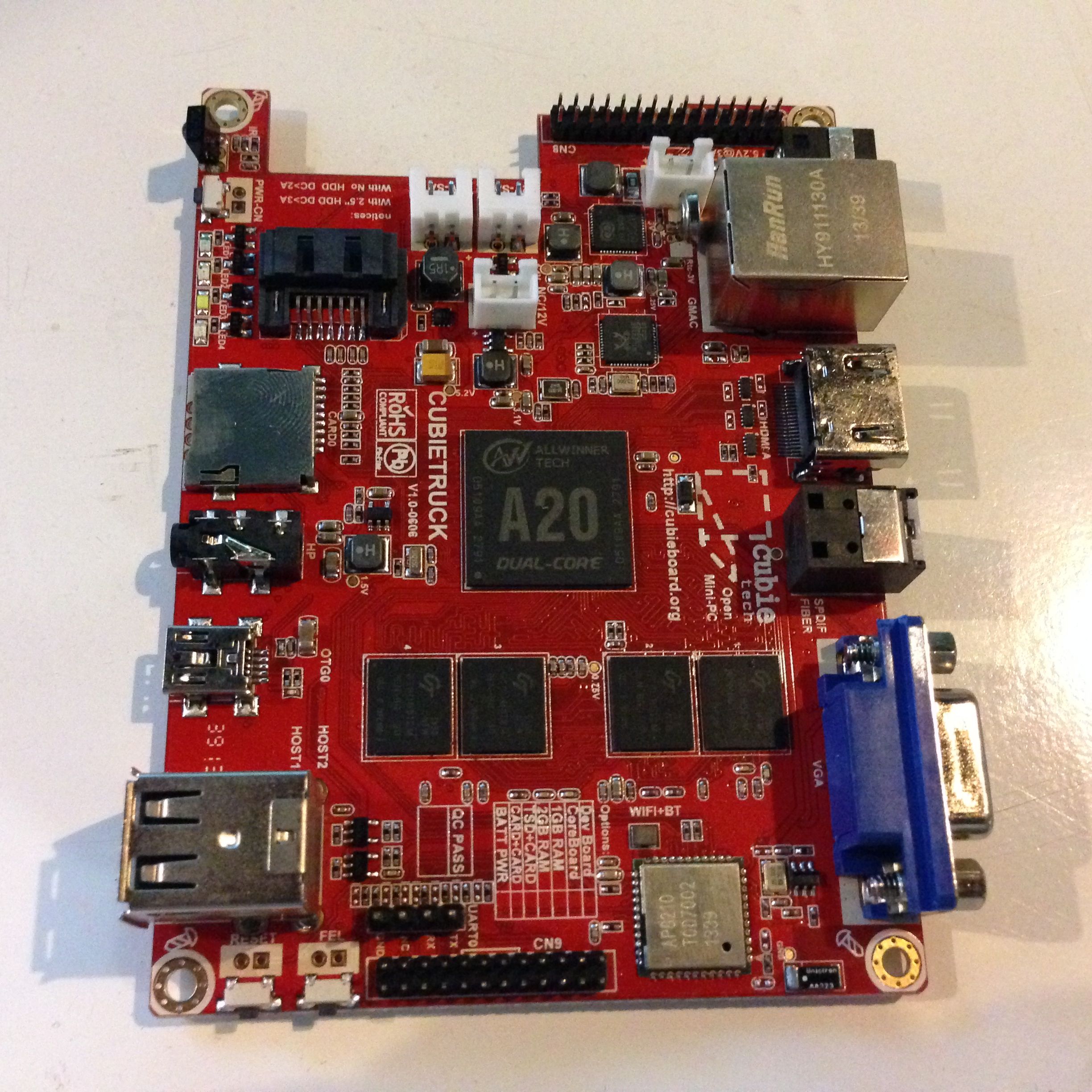

Received my board last week. Out of all the board I had tested so far this one is the most powerful I have tested. Really enjoying the performance so far but need to hack in more for the Bluetooth and other options which is built in the board. Will keep posted 🙂
